Description
Form Factor
ATX
Series

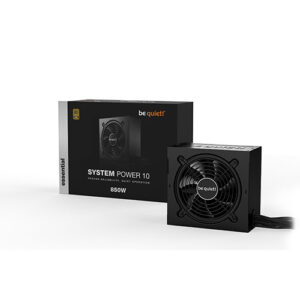

Be Quiet! System Power 10
Modular
Fully Wired
Compatability
ATX 12V v2.52
EPS 12V v2.92
EPS 12V v2.92
Wattage
650 W
Connectors
1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P4 (CPU)
2 x PCI-e 6+2-pin (GPU)
1 x PATA
6 x SATA
1 x P4+4 (CPU)
1 x P4 (CPU)
2 x PCI-e 6+2-pin (GPU)
1 x PATA
6 x SATA
Rail Design
Single strong 12V-rail
AC Input
200-240 Vac
PFC
Active PFC
Fan Type
Temperature-controlled 120mm quality fan
Fan Bearing
Sleeve Bearing
Noise
20% load: 8.9 dB(A)
50% load: 11.2 dB(A)
100% load: 30.37 dB(A)
50% load: 11.2 dB(A)
100% load: 30.37 dB(A)
80+ Certification
80+ Bronze
Efficiency
230V, 20% load: 88%
230V, 50% load: 88.5%
230V, 100% load: 85.6%
230V, 50% load: 88.5%
230V, 100% load: 85.6%
MTBF
100,000 hours
Protection
OCP (over current protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
SIP (Surge & Inrush Protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
SIP (Surge & Inrush Protection)
Additional Features
See Overview / Video
Package Contents
Screws
Manual
Manual
Weight/Dimensions
1.86 kg
(LxWxD) 150 x 140 x 86 mm
(LxWxD) 150 x 140 x 86 mm
Package Weight
1.8600 kg
Warranty
5 Years
